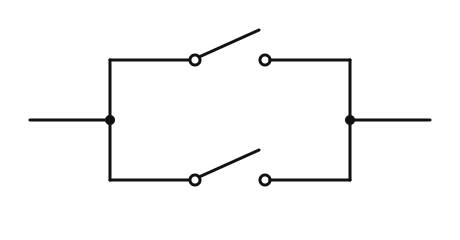

What Logic Gate does this switch circuit indicate?
- SR gate
- DC gate
- OR gate
Explanation from PART66Online
Two switches connected in parallel give a path from input to output when either switch is closed, or both: that is the OR function. Switches in series would represent AND, since both would have to be closed. 'SR' and 'DC' are not logic gates (SR is a type of flip-flop).
J
justlarry88 asked · 30 Aug 2019
where I can find those type of switch circuits for the logic gates?
