12.1 — Theory of Flight — Rotary Wing Aerodynamics

Rotary wing aerodynamics is fundamentally different from fixed-wing flight. A helicopter generates lift by spinning rotor blades — effectively rotating wings — through the air. This creates unique aerodynamic phenomena that do not exist on aeroplanes: dissymmetry of lift, gyroscopic precession, blade flapping, Coriolis effect on blades, and the ability to hover, fly sideways, and autorotate. Mastering these concepts is essential for every helicopter technician.

Terminology

Disc Geometry: Area, Disc Loading and Solidity

Three derived quantities turn the vocabulary above into numbers an engineer can work with. The disc area is the area of the circle the tips sweep, so it depends only on rotor radius. The disc loading is the aircraft weight carried by each square metre of that circle, and it is the single most useful figure for predicting how much downwash a rotor will produce and how much power it will need to hover. Solidity is the fraction of the disc that is actually blade.

Solidity is raised by adding blades or by widening the chord of the blades already fitted, because both put more blade area inside the same swept circle. Changing the blade angle does not change solidity at all — pitch alters how hard each blade works, not how much blade there is. A higher-solidity rotor can carry more thrust before the blades reach their stalling angle, which is why heavy-lift and high-speed designs use more blades rather than simply more pitch, but the extra blade area also drags more air round with it and costs profile power in the cruise.

Further Terms You Will Meet on the Ramp

Pitch Angle and Angle of Attack — the Distinction the Exam Tests

These two angles are constantly confused and the difference between them is examined directly. Pitch angle is mechanical: it is the angle the blade has been physically twisted to by the control system, measured against the rotor's own reference plane, and the pilot sets it — equally on all blades with the collective, and cyclically once per revolution with the cyclic. Angle of attack is aerodynamic: it is the angle between the chord line and the airflow the section is actually meeting, and nobody sets it directly. It is what is left when the inflow angle is subtracted from the pitch angle.

Two consequences follow and both are examinable. First, lift depends on angle of attack, never on pitch angle directly — pitch only reaches the lift through the angle of attack it produces. Second, because induced velocity is not the same everywhere on the disc, two blades set to identical pitch by the same swashplate can be flying at quite different angles of attack at the same instant. This is why a rotor is tracked and balanced dynamically, in the air, and not simply set to matching pitch angles on the ground.

Aerodynamic Principles of Rotary Wing Flight

How a Rotor Blade Actually Produces Lift

A rotor blade is an aerofoil and it makes lift exactly as a wing does. As the section moves through the air the flow accelerates over the upper surface and slows over the lower surface, so the static pressure on top falls while the pressure underneath stays comparatively high. Integrated over the whole blade area, that pressure difference is the lift force, and the larger share of it comes from the suction on the upper surface rather than from any push underneath. The rotor is not a screw boring its way into the air, and it does not lift by shovelling air downwards: the downwash is the accompanying reaction to the lift, not its cause.

The same relationship governs a blade section as governs any aerofoil, and it is worth committing to memory because almost every rotor phenomenon in this note is a consequence of it.

Note carefully which velocity goes into that expression. For a rotor it is the velocity of the blade section through the air, which in the hover is purely rotational (\(\Omega r\)) and in forward flight is the vector sum of rotational velocity, aircraft airspeed and the induced flow. The aircraft's airspeed on its own tells you nothing about what a given blade section is doing, which is why a helicopter can be stationary over a spot with its blades flying at several hundred knots.

Why Rotational Velocity Varies Along the Blade — and What Is Done About It

Every section of a blade completes a revolution in the same time, so a section at twice the radius travels twice as far and moves twice as fast. Because lift goes with the square of that velocity, a section at 80% radius meets four times the dynamic pressure of one at 40% radius. Left uncorrected, an untwisted blade would produce a lift distribution heavily concentrated near the tip: heavy bending loads at the root, a strong tip vortex, and poor efficiency because the air is being accelerated hard through a small annulus of the disc rather than gently through all of it.

Designers answer this with blade twist (washout), building a higher pitch angle into the root than into the tip. The reduced pitch outboard trims back the lift the high velocity would otherwise generate there, and the increased pitch inboard recovers lift from a region that would otherwise be nearly idle. The result is a flatter spanwise lift distribution, lower induced power in the hover, and a lower tip loading — which also means a weaker tip vortex for the following blade to fly through. Twist is rolled or moulded into the blade in manufacture; a technician cannot adjust it, and a blade found twisted outside its repair-scheme limits is scrap, not something to be corrected on the aircraft.

Total Reaction, and the In-Plane Component

It is often more revealing to treat the aerodynamic force on a blade section as a single total reaction and then resolve it whichever way answers the question in front of you. Resolved perpendicular to the relative airflow it is lift; resolved along the relative airflow it is drag. But a rotor blade is constrained to travel in a circle, so the resolution that determines whether the rotor speeds up or slows down is a third one: the component of total reaction lying in the plane of rotation.

In powered flight that in-plane component acts backwards, against the direction of blade travel, and the engine has to supply torque continuously to overcome it. Tilt the relative airflow the other way — by putting air up through the disc instead of down through it — and the total reaction tilts forward of the rotor axis, so its in-plane component now acts forwards, in the direction of rotation. That forward in-plane component of the total reaction, opposing the blade's profile drag and keeping the rotor turning without engine power, is what is meant by the autorotative force. It is an aerodynamic force generated by the airflow, not a control input the pilot applies and not a lever position.

Aerofoil Choice: Keeping the Centre of Pressure Still

A rotor blade has a design problem a fixed wing does not: it is a long, slender, torsionally flexible beam whose angle of attack changes every revolution, and it is held at the root by a control system that must not be fed large fluctuating twisting moments. On a cambered aerofoil the centre of pressure migrates along the chord as angle of attack changes, and on a rotating blade that migration turns into a cyclic pitching (feathering) moment which twists the blade, feeds loads back into the pitch links, and drives control-system wear and vibration.

The classic solution, and the one the examination expects, is the symmetrical aerofoil: with equal curvature above and below the chord line the centre of pressure stays essentially fixed near the quarter-chord as angle of attack varies, so the section produces almost no pitching moment of its own. The design objective is best stated as a property rather than a shape — the best rotor blade is one whose centre of pressure does not move — and modern blades often reach that same objective with a carefully shaped cambered section whose pitching moment is engineered close to zero. A strongly cambered section with a wandering centre of pressure would impose exactly the torsional loading the head is designed to avoid.

Centrifugal Force, Coning and the Choice of Rotor RPM

The dominant force on a turning rotor is not aerodynamic at all. Centrifugal force on a blade rises with the square of rotational speed, \(F_c = m\,\Omega^2 r\), and on a rotor at operating RPM it is very much larger than the lift the same blade produces. That force is what makes a set of thin, flexible blades behave as a rigid disc, and it is why rotor RPM is guarded so closely: the stiffness of the rotor is bought with speed.

The coning angle is the compromise between the two. Lift acts upwards along the blade and bends it up; centrifugal force acts outwards and pulls it back into the plane of rotation. The blade settles where the two moments about the flapping hinge balance, and the pair of forces that fixes the coning angle is therefore lift and centrifugal force — centrifugal force alone would hold the blades flat, and lift alone would fold them upwards. Working the two ends of that balance gives the directions to remember:

• More lift at constant RPM — coning angle increases. Raising the collective, increasing gross weight, or pulling g in a turn all bend the blades further up.
• Lower rotor RPM at constant lift — coning angle increases. Centrifugal force falls with the square of RPM, so the same lift bends the blades further up. A low-RPM, high-weight condition gives the greatest coning of all, which is why rotor droop is treated as an emergency.
• Excessive coning reduces the effective disc area, because the blades are no longer sweeping the full circle. The rotor produces less thrust for the same pitch, which tempts more collective, which cones the blades further — the mechanism behind the classic low-RPM/overpitching trap.

The design RPM of a rotor is fixed chiefly by the blades themselves — their mass and their radius — and not by the engine or the gearbox, which are matched afterwards to whatever speed the rotor needs. The blades must turn fast enough to generate the centrifugal force that stiffens them and to store enough rotational kinetic energy (\(E = \tfrac{1}{2} I \Omega^2\), where the inertia \(I\) depends on blade mass and the square of its radius) to give the pilot usable time and flare energy after a power loss. At the other end, tip speed must stay far enough below the speed of sound that the advancing tip in forward flight does not run into compressibility. Between those two limits sits a narrow band of usable rotor speed, and everything else in the drive train is designed around it.

Momentum Theory: Where the Power Goes in a Hover

Viewed as a whole rather than blade by blade, the rotor is a device that draws air in from above and pushes it out below at a higher velocity; the thrust equals the rate at which it changes the momentum of that air. This simple accounting gives a remarkably useful result for the hover, because it links induced velocity directly to disc loading — nothing else about the rotor need be known.

The same expression explains the effect of air density, which is examined directly. Density appears under the square root, so as \(\rho\) falls — on a hot day, at high elevation, or both — the induced velocity for a given thrust rises and the power required to hover rises with it. At the blade, the immediate effect is simpler still: with less dense air each section produces less lift at the same angle of attack, so to hold position the pilot must increase the collective pitch, raising the pitch of all blades equally until total rotor thrust is restored. Rotor RPM is not the lever for this — it is held constant by the governor — and cyclic only tilts the disc to change direction rather than changing total lift. The cost of that extra collective is extra torque, so the anti-torque system and the power margin are both squeezed on exactly the day the aircraft is least able to spare them.

Dissymmetry of Lift and Blade Flapping

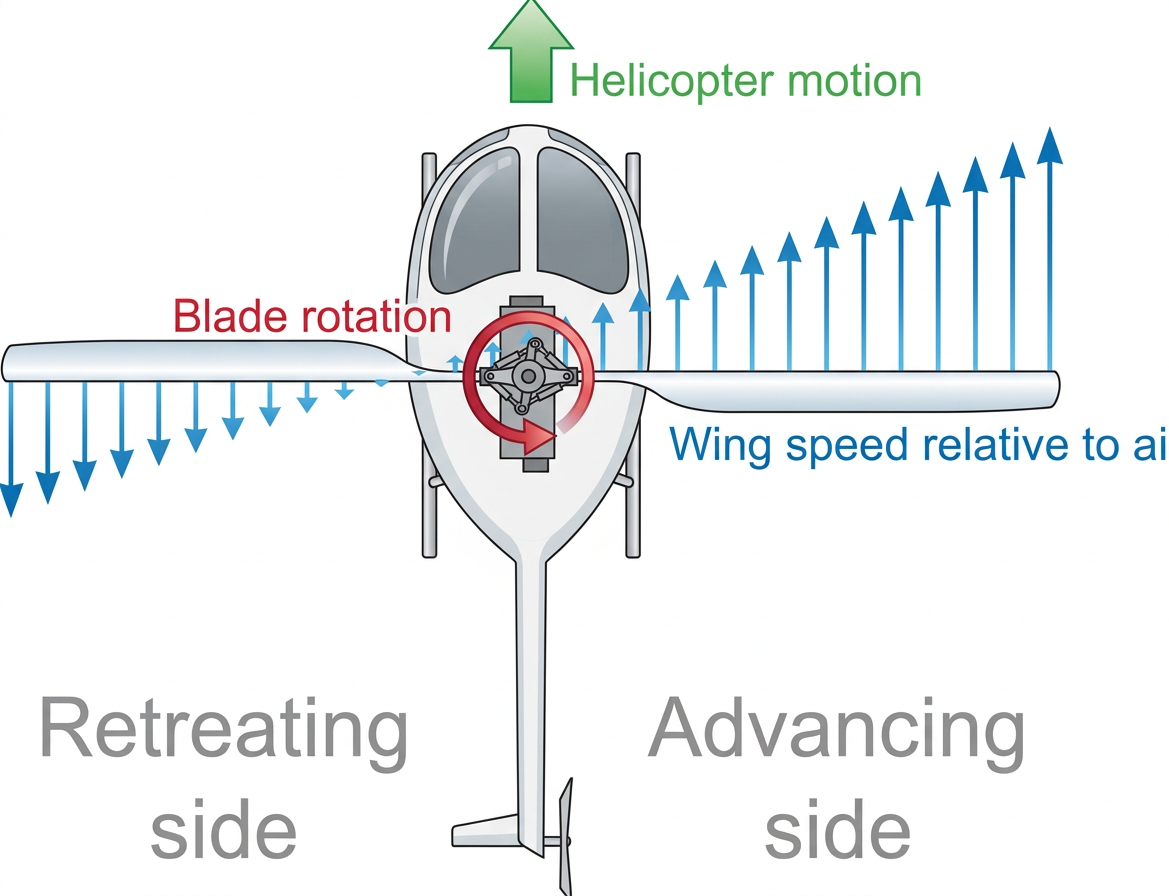

Dissymmetry of lift is the unequal production of lift between the advancing and retreating sides of the rotor disc in forward flight. It is the most important aerodynamic phenomenon unique to helicopters.

In a hover, all blades experience the same airspeed (rotational velocity only) at any given radial station, so lift is distributed symmetrically. But in forward flight, the advancing blade sees rotational speed plus forward speed, while the retreating blade sees rotational speed minus forward speed. For example, at 150 knots forward speed and 400 knots tip speed:

• Advancing blade tip speed: 400 + 150 = 550 knots
• Retreating blade tip speed: 400 − 150 = 250 knots

Since lift is proportional to velocity squared (\(L \propto V^2\)), the advancing blade would produce far more lift than the retreating blade. If uncorrected, this would roll the helicopter violently toward the retreating side.

Blade Flapping — The Solution

The solution is blade flapping. The blades are attached to the hub via flapping hinges (or the blade root is designed to flex in a semi-rigid or bearingless head). When the advancing blade generates excess lift, it flaps upward. Flapping up changes the relative airflow angle, reducing the blade's angle of attack and therefore reducing its lift. Conversely, the retreating blade flaps downward, increasing its angle of attack and increasing its lift. The result is that lift is equalised across the disc — dissymmetry of lift is automatically corrected by flapping.

Torque Reaction and Directional Control

Newton's Third Law dictates that when the engine drives the rotor clockwise (viewed from above), the fuselage will try to rotate counter-clockwise (torque reaction). Without a means to counteract this torque, the helicopter would spin uncontrollably. Three methods are used:

How Big Is the Torque, and What Changes It

Torque reaction is not a fixed quantity to be trimmed out once. The torque the transmission delivers to the rotor is set by the power being absorbed and the speed it is turning at, \(Q = P / \Omega\), and because the governor holds rotor RPM essentially constant, torque follows power almost directly. Raise the collective and the blades take a bigger bite of air; power rises, torque rises, and the anti-torque system must produce a proportionally larger opposing moment or the nose swings. Lower the collective and the reverse happens. This is why the pedals are worked continuously in the hover and barely touched in the cruise, and why the pedal position that holds heading changes every time the power changes.

What the tail rotor supplies is a moment, not just a force: thrust multiplied by the distance from the tail rotor to the main rotor axis. That long lever is the reason a tail rotor absorbing a modest share of engine power can hold a large main rotor's torque, and it is also why tail boom length, tail boom straightness after a strike, and correct rigging of the whole pedal run are airworthiness items rather than convenience items.

Direction of Rotation, Yaw Tendency and Tail Rotor Drift

Once the tail rotor is producing side thrust, it is doing two things at once, and only one of them is wanted. The moment about the main rotor axis is what holds the heading. The force itself has nowhere to go: it acts on the whole aircraft and pushes it sideways. That unwanted sideways push is tail rotor drift, also called the translating tendency, and it acts toward whichever side the tail rotor is thrusting — regardless of whether the tail rotor is mounted on the left or the right of the fin, because it is the direction of thrust and not the mounting position that produces the force. Working both directions of rotation through gives:

The drift must be cancelled or the pilot would have to hold a permanent lateral cyclic offset just to hover over a spot. Two design fixes are common. The first is to tilt the main rotor mast laterally by a small angle, toward the side opposite the drift, so that the rotor thrust vector gains a small horizontal component pointing back against the tail rotor thrust; the aircraft then hovers with the fuselage level and the cyclic near neutral. The second is to build an equivalent lateral bias into the rigging of the cyclic control system so that a centred stick already commands the required disc tilt. Note precisely what this correction is for: it addresses the sideways drift. It does not counter torque — that remains the tail rotor's job — and it is not a roll correction.

The Rolling Couple, and Why Tail Rotor Height Matters

Tail rotor thrust and the opposing horizontal component of main rotor thrust are two side forces acting in opposite directions. If they act at different heights, they form a couple, and that couple rolls the aircraft. In the air the pilot simply trims it out and it is felt only as a one-wheel-low or one-skid-low hover attitude; on touchdown it shows up as a distinct lateral tilt as the aircraft settles, and on a slope or a moving deck it is genuinely unwelcome. The design answer is to arrange the tail rotor so that its thrust line lies in line with the main rotor hub, which removes the vertical separation and therefore removes the rolling couple altogether. This is why tail rotors on many types sit high on a raked fin or on a pylon rather than low on the boom, and why an unapproved change to fin or pylon geometry is never a minor modification.

Tail Rotor Rigging and Aerodynamic Behaviour

• Neutral pedals give positive pitch. The tail rotor is rigged so that with the pedals central the blades already stand at a positive pitch angle and are producing anti-torque thrust, because in normal powered flight there is always torque to oppose. A tail rotor rigged to zero or negative pitch at neutral pedal would leave the torque reaction uncountered and the aircraft would yaw as soon as power was applied. The pedal range then runs from a small negative pitch — needed for autorotation and for yawing against the torque — through neutral to a large positive pitch for maximum-power conditions.
• The tail rotor experiences dissymmetry of lift too. It is a rotor working in a crossflow whenever the aircraft has sideways or forward speed, so its advancing blade sees a higher relative airflow than its retreating blade exactly as the main rotor's does. Tail rotors are therefore built with flapping freedom — usually a teetering (see-saw) head — and are commonly given a delta-three hinge, an inclined flapping hinge that mechanically reduces blade pitch as the blade flaps up. Because reducing pitch reduces angle of attack and therefore lift, this coupling damps the flapping response and keeps flapping angles small in a very confined space.
• The pedal that increases thrust costs power. Anti-torque thrust is bought from the same engine as rotor thrust. Whichever pedal calls for more tail rotor pitch takes a larger slice of available power away from the main rotor, so unless collective or throttle is added the helicopter will begin to sink; the opposite pedal releases power back to the main rotor and the aircraft tends to climb. On a governed engine the response is automatic, but on a piston type with a manually managed throttle it is a handling technique the pilot must apply deliberately.
• Loss of tail rotor effectiveness. At low airspeed and high power, particular combinations of wind direction can put the tail rotor into disturbed air — the main rotor's own vortices, its own wake, or a weathercocking flow that pushes the nose round — so that the yaw it produces no longer matches the pedal. Recovery is flown by regaining airspeed to get the fin and tail rotor into clean air. For the technician the point is that a genuine loss of effectiveness has an aerodynamic cause, whereas an uncommanded yaw at ordinary power settings is a rigging, control-run or drive fault to be investigated.
• Forward speed unloads the tail rotor. As airspeed builds, the vertical fin generates its own side force, so less tail rotor thrust is needed to hold heading and the pedal moves toward the neutral end of its range. Many fins are deliberately cambered or offset so that at cruise speed the fin alone carries most of the anti-torque duty.

The Three Systems Compared in Service

Beyond how each system generates its side force, the practical differences an engineer meets are in inspection burden and in where the failure modes lie. A conventional tail rotor puts an exposed, high-inertia rotor at the end of a long, slender drive train: hanger bearings, flexible couplings, an intermediate and a tail gearbox with their own oil levels and chip detectors, and a control run that may be cable, push-rod or a mixture. It must be tracked and balanced, and a tail rotor out of balance announces itself as a characteristic high-frequency vibration felt through the pedals rather than through the airframe.

A Fenestron trades that exposed rotor for a many-bladed fan of small diameter turning faster inside a duct, so the blades are shorter, lighter and shielded. The duct itself is aerodynamically active: the suction generated around the intake lip contributes a real share of the total side force, which is why duct-lip contour, surface condition and the very small blade tip clearance are inspection items and why erosion or a dented lip is more than cosmetic. The blades are commonly spaced unevenly around the hub, which spreads the acoustic energy across several frequencies instead of concentrating it in one tone — this is a noise measure, and it means a blade set must be installed in its designated positions.

A NOTAR installation removes the exposed rotor entirely, at the cost of depending on the main rotor's downwash flowing over the boom to work its circulation control. That dependence has a direction worth knowing: the boom slots are most effective in the hover and at low speed, where the downwash over the boom is strongest, while at higher forward speeds the downwash is swept aft and the vertical stabilisers plus the variable direct jet thruster take over the yaw duty. Maintenance attention shifts accordingly — from a tail rotor track and balance to fan condition and balance, slot cleanliness and profile, boom surface condition, and the rigging of the thruster's rotating nozzle.

Gyroscopic Precession and Phase Lag

The spinning rotor acts as a gyroscope. A fundamental property of a gyroscope is precession: when a force is applied to a spinning disc, the resulting displacement occurs 90° later in the direction of rotation.

This has a critical consequence for helicopter control. If the pilot wants to tilt the rotor disc forward (to fly forward), the control system must change the blade pitch at a point 90° before the desired disc tilt. For a counter-clockwise rotating rotor (viewed from above), to tilt the disc forward, the blade pitch must be increased at ψ = 270° (retreating side) and decreased at ψ = 090° (advancing side). The resulting flapping response occurs 90° later — maximum flap-up at ψ = 180° (over the tail), tilting the disc forward as desired.

Two Ways of Explaining the Same 90 Degrees

The gyroscopic account above is the one to quote in an examination, but it is worth knowing the aerodynamic account as well, because it explains why the lag is close to but not always exactly 90°. A flapping blade is a spring-mass system: it is pulled back toward the plane of rotation by centrifugal force, which acts like a very stiff spring, and its natural frequency in flap works out at almost exactly one cycle per revolution. A cyclic pitch input forces that system at precisely its own natural frequency, and any lightly damped system driven at resonance responds a quarter of a cycle behind the force that drives it. A quarter of a revolution is 90°. The gyroscopic explanation and the resonance explanation are two descriptions of the same physical result, and both predict the same answer: after a pitch change, the blade reaches its maximum flapping displacement roughly 90° further round the disc, measured in the direction of rotation.

Notice what is being lagged. It is not the lift that lags — the lift responds to the pitch change immediately. What lags is the displacement. The blade begins to accelerate upward the instant its angle of attack increases, keeps accelerating for as long as the extra lift is present, and therefore reaches its highest point when the extra lift has fallen back to zero, which happens a quarter of a revolution later. Thinking of it as "force now, maximum movement a quarter turn later" gets the direction right every time.

Worked Case: Flying Backwards

Take the mirror image of the forward-flight case above, on the same anti-clockwise rotor viewed from above, and reason it through step by step rather than trying to memorise a result.

The same three steps solve any variant of this question. Decide which way the disc must tilt, decide where the blade must be at its highest point to produce that tilt, then count back 90° against the direction of rotation to find where the pitch goes in. The only piece of aircraft-specific information you need is which way the rotor turns.

How the Swashplate Hides the Offset from the Pilot

If the pilot had to apply the cyclic 90° away from the direction he wanted to go, helicopters would be unflyable. The offset is therefore built into the mechanism. The swashplate assembly has a non-rotating (stationary) star, moved directly by the cyclic and collective control runs, and a rotating star which turns with the mast on a bearing between the two and carries the pitch links up to the blade pitch horns. Tilting the non-rotating star tilts the rotating star with it, and each pitch link then rises and falls once per revolution, giving each blade a sinusoidal pitch variation whose maximum occurs at a fixed azimuth.

The 90° is introduced geometrically, by where the pitch horn sits relative to the blade and where the pitch link attaches to the rotating star. That built-in angular offset is called the control phase angle or advance angle. Designers may split it between pitch horn offset and a mechanical mixing unit, but the result is always the same: the swashplate is commanded in one direction and the disc tilts in the direction the pilot actually asked for, so cyclic forward gives disc forward and cyclic left gives disc left.

When the Lag Is Less Than 90 Degrees

The clean 90° result assumes the blade is free to flap about a hinge lying on the axis of rotation. Real heads differ, and the difference has a consistent direction.

• Teetering (see-saw) heads have effectively zero flapping hinge offset, since the pair of blades pivots about a single point on the mast axis. The phase lag is essentially the full 90°, and the head can transmit almost no moment to the mast — which is why these types are sensitive to low-g manoeuvres, where the rotor is lightly loaded and the tail rotor's side force is no longer opposed by rotor thrust.
• Articulated heads with offset flapping hinges place the hinge a short distance out from the axis. Centrifugal force acting on the flapped blade now has a moment arm about the mast, so the head itself transmits a moment to the fuselage — that is what gives these types crisp control response. The flapping response builds slightly earlier in azimuth, so the phase lag becomes somewhat less than 90°.
• Hingeless and bearingless heads replace hinges with a flexible root that behaves like a large effective hinge offset. Control power is higher again and the phase lag is noticeably less than 90°. The designer compensates by setting the control phase angle to match the actual lag of that head — another reason the phase angle is a design figure to be rigged to the manual, never a number to be assumed.

One further consequence of the lag is worth carrying into the sections that follow: any once-per-revolution disturbance of blade lift — not only a deliberate cyclic input — produces its maximum flapping displacement 90° later. The dissymmetry of lift produced by forward speed, the uneven inflow across the disc at low speed, and a single mis-tracked blade all obey the same rule, which is why a rotor fault so often shows itself at an azimuth a quarter of a turn away from where it originates.

Ground Effect and Translational Lift

Ground Effect

When a helicopter hovers close to the ground (within approximately one rotor diameter of height), the rotor downwash cannot fully develop and is deflected outward by the ground surface. This reduces the induced velocity at the rotor disc, which reduces induced drag — the largest component of drag in a hover. The result is that less power is required to hover in ground effect (IGE) than out of ground effect (OGE). Typically, hovering IGE requires 10–15% less power than hovering OGE. Ground effect diminishes rapidly above one rotor diameter height and is negligible above 1.5 rotor diameters.

Translational Lift

Translational lift is the increase in rotor efficiency that occurs as the helicopter transitions from hover to forward flight (typically becoming noticeable at 15–24 knots). In a hover, the rotor operates in its own downwash — the air is recirculated and disturbed. As the helicopter moves forward, the rotor encounters undisturbed (clean) air, which is more efficient at producing lift. Additionally, the induced velocity at the rotor disc decreases with increasing forward speed (the disc is sweeping through a larger volume of air per second), reducing induced drag. The pilot feels translational lift as a noticeable "bump" or climb tendency during the transition.

Ground Effect at the Blade: Pressure Below, Angle of Attack Above

It is worth following ground effect all the way down to the blade section, because the examination asks about it from two different directions and both answers must be available. Seen from underneath, the descending column of air cannot escape freely when the surface is close, so it spreads outward and stagnates, and a region of raised static pressure — the ground cushion — builds up beneath the rotor disc and helps support the aircraft. Seen at the blade, the restricted flow means the air is not being drawn down through the disc as quickly, so the induced velocity falls. A smaller induced velocity means a smaller inflow angle, and since \(\alpha = \theta - \phi\), a smaller inflow angle leaves a larger angle of attack at the same collective setting. The blade therefore produces more lift for the same pitch, or equivalently the same lift for less power. Both statements describe one effect: the ground increases the lift available.

There is a second, smaller contribution. The reduced induced velocity also tilts the total reaction of each section further forward, so the in-plane component holding the blade back is smaller and the rotor takes less torque to turn at the same thrust. That is the induced-drag reduction described above, and it is the part the pilot notices as a lower torque indication when hovering close to the surface.

What Weakens or Destroys Ground Effect

• Height. The effect is strongest with the skids or wheels just clear of the surface and weakens continuously as height increases, becoming negligible beyond about one and a half rotor diameters. This is why flight manuals publish two separate hover ceilings, in and out of ground effect, and why a load that can be lifted from a hard pad may be beyond the aircraft over an obstruction.
• Surface texture. Long grass, standing crops, brush, deep snow and broken or rocky ground absorb and disperse the downwash instead of turning it cleanly outward, so the pressure cushion that builds up is weaker than over a hard, smooth surface. Water is a special case: the surface deforms and the downwash digs a depression, so ground effect over water is reduced compared with a solid surface.
• Slope and obstructions. A sloping surface, a lip, a wall or a trench alongside the aircraft lets the deflected downwash escape in one direction more easily than another, so the cushion becomes asymmetric and the aircraft may need cyclic to stay level.
• Wind. Any appreciable wind, whether from the aircraft's own translation or from the weather, carries the cushion away downwind before it can build. Ground effect is fundamentally a still-air, low-speed benefit.

Recirculation — the Trap That Looks Like Loss of Ground Effect

A helicopter holding a low hover in a strong crosswind loses lift, and the reason is examined precisely because the obvious answer is the wrong one. The aircraft is still only a couple of metres up, so it has not climbed out of ground effect — the cushion is still there. What the crosswind does is carry the outflowing downwash sideways along the surface and then blow it back up into the rotor disc on the upwind side. The blades then meet air that is already moving downwards before it reaches them. That extra downward velocity increases the inflow angle at the affected sections, which reduces their angle of attack and reduces their lift at unchanged collective. The loss is caused by recirculation, not by the removal of the ground cushion.

Recognising the mechanism matters operationally as well as in the examination, because the same recirculation appears whenever a rotor is worked in confined air: hovering close to a hangar wall or a line of trees, operating on a small helideck, or hovering in a hollow. It also explains the classic "hovering in a hole" experience in a confined-area landing, where the aircraft needs noticeably more power than the same hover would take in the open.

Translational Lift: Why Induced Velocity Falls with Speed

Two things happen as the aircraft accelerates, and they are worth separating. The first is the escape from the rotor's own wake, described above: below roughly 15 knots the rotor is still flying through the disturbed, descending air it has just processed, and above that speed it has outrun the recirculating vortices and is meeting undisturbed air. The second is a continuous change in the mass flow through the disc. In the hover the rotor must accelerate a relatively small mass of air to a high velocity to generate its thrust; in forward flight it sweeps through a much larger volume of air every second, so it obtains the same thrust by giving a much smaller velocity change to a much greater mass.

Because a falling induced velocity means a falling inflow angle, the angle of attack of every blade section rises at unchanged collective — which is the aerodynamic origin of the climb tendency the pilot feels as the aircraft accelerates through the transition. Left alone, the helicopter climbs; the correct response is to lower the collective slightly, and the aircraft then accelerates on less power than it needed to hover.

Two Effects That Accompany the Transition

Transverse flow effect. At low forward speed the disc is only partly clear of its own downwash: air entering over the front of the disc has not yet been accelerated downwards, while air leaving over the rear has passed through the disc and carries a substantial induced velocity. The front and rear of the disc therefore work at different inflow angles and different angles of attack, so lift is unevenly distributed fore and aft. Because the flapping response to any once-per-revolution lift variation appears 90° later in the direction of rotation, this fore-and-aft imbalance shows up as a lateral disc tilt, felt as a distinct vibration and a roll tendency in the speed band just below effective translational lift. Which way the roll acts follows from the direction of rotor rotation for the type.

Tail rotor efficiency. The tail rotor gains from the cleaner airflow at the same time the main rotor does, and the vertical fin begins to contribute its own side force. The pedal position needed to hold heading therefore changes noticeably as the aircraft passes through the transition, and the aircraft will yaw if the pilot does not follow it. It is the same clean-air mechanism, applied to a smaller rotor at the other end of the aircraft.

Autorotation

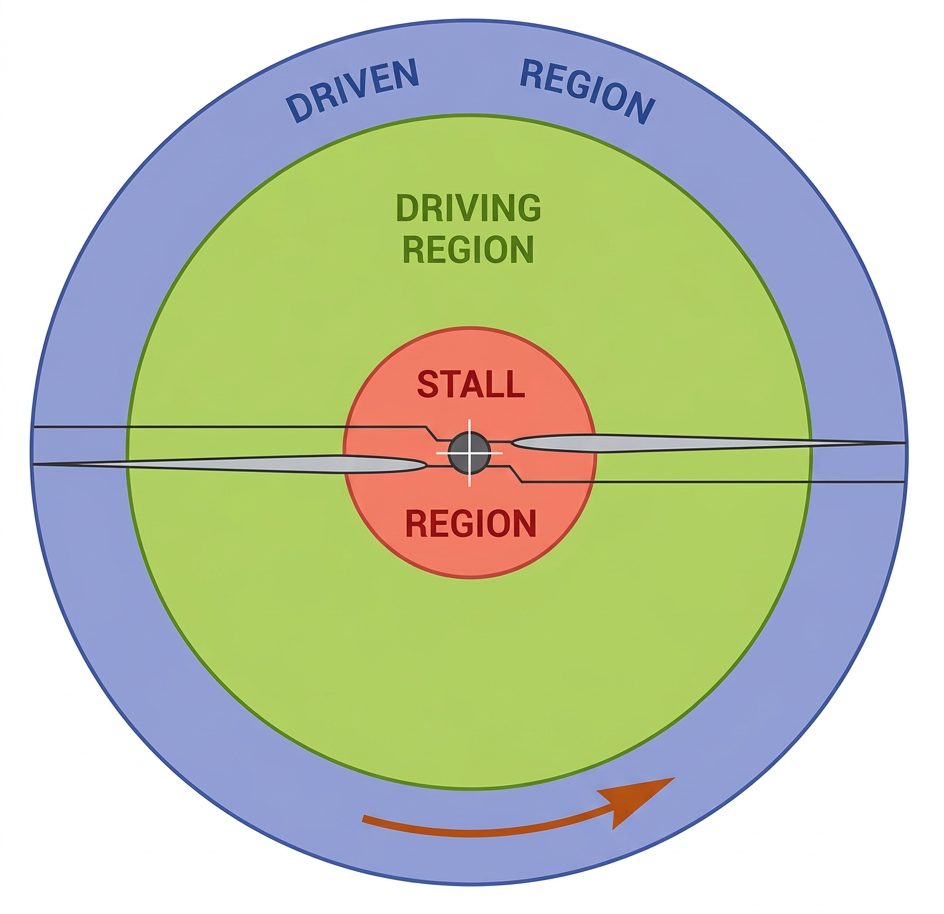

Autorotation is the condition of flight where the rotor is driven entirely by aerodynamic forces resulting from the helicopter descending through the air — no engine power is used. It is the helicopter equivalent of a glide in a fixed-wing aircraft and is the primary emergency procedure after an engine failure.

During autorotation, the helicopter descends and air flows upward through the rotor disc. This upward airflow changes the relative airflow at each blade section, tilting the total aerodynamic reaction force forward (in the direction of rotation). The forward component of this force drives the rotor, maintaining RPM without engine power. The rotor blade can be divided into three regions:

Vortex Ring State, Blade Stall and Compressibility

Vortex Ring State (VRS) / Settling with Power

Vortex ring state occurs when the helicopter descends into its own downwash at a rate of descent greater than about 300 ft/min at low forward speed (below ~30 knots translational lift speed), typically with power applied. The rotor downwash is recirculated back up through the rotor disc, creating a doughnut-shaped vortex ring around the disc. The rotor becomes inefficient — increasing collective (more power) may not arrest the descent because the additional downwash is immediately recirculated. Symptoms: high vibration, uncommanded yaw, loss of collective effectiveness, rapidly increasing rate of descent. Recovery: lower collective, increase forward speed (or autorotate) to fly out of the recirculating air mass.

Retreating Blade Stall

As forward speed increases, the retreating blade must increase its angle of attack to compensate for lower airspeed (to equalise lift). At a critical forward speed, the retreating blade's angle of attack exceeds the stall angle, and the blade stalls. This begins at the blade tip (where the velocity deficit is greatest) and progresses inboard. Symptoms: vibration, nose pitch-up, and roll toward the retreating side. Retreating blade stall sets the maximum forward speed (VNE) of the helicopter.

Compressibility Effects

At high forward speeds, the advancing blade tip can approach or exceed the speed of sound (Mach 1). At this point, shock waves form on the blade surface, causing a sudden increase in drag, loss of lift, and vibration. Combined with retreating blade stall on the other side, compressibility limits the helicopter's maximum speed. This is why conventional helicopters are limited to approximately 170–200 knots — the advancing blade tip is near Mach 0.9 and the retreating blade is near stall simultaneously.

Coriolis Effect — Blade Lead-Lag

The Coriolis effect in rotary wing flight causes blades to accelerate or decelerate in the plane of rotation (lead or lag) as they flap up and down. This is a direct application of the conservation of angular momentum.

When a blade flaps upward, its centre of mass moves closer to the axis of rotation (the effective radius decreases). To conserve angular momentum (\(L = I\omega\)), the blade speeds up (leads ahead). When a blade flaps downward, the centre of mass moves further from the axis, and the blade slows down (lags behind). This lead-lag motion occurs once per revolution and must be accommodated by the rotor head design — typically via lead-lag hinges (drag hinges) on fully articulated heads, or by flexible elements on hingeless/bearingless heads. Lead-lag dampers are fitted to prevent excessive oscillation and the dangerous condition known as ground resonance.

The Three Blade Motions — Do Not Confuse Them

A rotor blade on a fully articulated head is free to move in three independent ways, each about its own axis and each provided for by its own hinge or bearing. Examination questions routinely offer one motion as the distractor for another, so it is worth fixing the geometry precisely: the hinge is named after the direction of its axis, while the motion it permits is at right angles to that axis.

Say it once in the form the question asks for: blade dragging is the horizontal movement of each blade about its vertical hinge. Vertical movement about a horizontal hinge is flapping, and it is a different motion entirely. Note also that the motions are coupled, not independent in service: a blade that flaps also changes its angle of attack and, through the resulting change in lift, its drag — which is why a flapping blade experiences a change in both angle of attack and drag force even though the pilot has commanded no pitch change at all.

Putting a Number on the Coriolis Effect

Conservation of angular momentum is easy to state and easy to under-appreciate, so it helps to see the size of the effect. A blade's moment of inertia about the rotor axis depends on the square of the radius at which its mass sits, \(I = \sum m r^2\), and the product \(I\Omega\) is what must be conserved when no in-plane force is applied. Because of that square, a modest change in the radius of the blade's centre of mass produces a doubled proportional change in inertia.

The associated in-plane force follows the standard Coriolis form, \(F = 2 m \Omega v_r\), where \(v_r\) is the rate at which the mass is moving radially inward or outward. Two directions follow from it. The force is larger at higher rotor RPM, and it is larger when the blade flaps quickly — so the most demanding case is a rapid, large flapping excursion at full rotor speed, which is exactly the condition produced by an abrupt cyclic input or a strong gust rather than by steady cruising flight.

Head Designs: Hinge, Flexure, or Design the Effect Out

• Fully articulated heads give each blade its own drag hinge and its own damper. This is the general solution and it is used wherever there are three or more blades.
• Hingeless and bearingless heads replace the hinge with a flexible root section that bends in-plane. The motion still occurs, it is simply accommodated elastically, and damping is provided by elastomeric elements built into the root region rather than by a discrete damper unit.
• Underslung teetering heads take a different approach: rather than accommodating the Coriolis force, they largely avoid generating it. The teetering hinge is placed above the blades' centre of mass so that, as the see-saw tilts, each blade's centre of mass swings very nearly along an arc that keeps its distance from the axis of rotation constant. If the radius of the centre of mass barely changes, the moment of inertia barely changes, and there is almost no lead-lag tendency to accommodate. This is the reason two-blade underslung rotors can be built with no drag hinges and no lead-lag dampers at all — the geometry has removed the problem rather than absorbing it.

Ground Resonance and Why the Dampers Are Airworthiness Items

Ground resonance is a mechanical instability, not an aerodynamic one, and it is the reason lead-lag damping is treated so seriously. In normal running the blades are evenly spaced and the rotor's centre of gravity sits on the axis. If something displaces one blade in lead-lag — a heavy or one-wheel-first touchdown, taxiing over rough ground, or a shock through the undercarriage — the blades become unevenly spaced and the rotor's centre of gravity moves off the axis. A rotating out-of-balance force is then applied to the airframe. If the frequency of that force is close to a natural frequency of the fuselage bouncing on its undercarriage, and the aircraft is in contact with the ground so that the undercarriage can feed energy back into the rotor, the oscillation reinforces itself and can build to destructive amplitude within a very few seconds.

Two things break the loop, and both belong to maintenance as much as to flying. The first is lead-lag damping: dampers absorb the energy of blade in-plane motion so the disturbance decays instead of building. The second is the landing gear: correct oleo servicing and correct tyre pressures set the airframe's natural frequency and provide their own damping, so an under-serviced strut or a soft tyre changes the very frequencies the design relied on. A serviceable damper on an incorrectly serviced undercarriage does not give a safe aircraft, and the flight manual's ground-resonance limitations assume both. The pilot's escape follows the same logic: if rotor RPM is within its normal range the fastest cure is to lift off, because leaving the ground removes the ground reaction path that feeds the oscillation; if rotor RPM is too low for that, the throttle is closed and the collective lowered to stop the rotor and take the energy out of it.

Hingeless and bearingless heads can suffer a related instability in flight, known as air resonance, where the in-plane blade motion couples with the aircraft's rigid-body roll and pitch modes instead of with the undercarriage. It is dealt with by the same means — adequate in-plane damping designed into the root or the damper elements — which is why damper condition, freedom of blade lead-lag movement and correct damper matching within a set are inspection items, and why a leaking hydraulic damper or a cracked elastomeric element is never deferred as a cosmetic defect.

Flight Regimes

The Power-Required Curve Behind the Table

The U-shaped total-power curve referred to in the forward-flight row is the sum of three separate demands, each with its own behaviour against airspeed. Knowing which component dominates where turns the curve from something to be memorised into something that can be reasoned out.

Add the three and the minimum of the total sits in the middle of the speed range, at the speed the retained table quotes. Two performance speeds fall straight out of the curve. The speed for minimum power gives the greatest excess power over what level flight demands, so it is the speed for maximum rate of climb and for maximum endurance. The speed for the best ratio of speed to power — found where a line from the origin just touches the curve — gives the best specific air range and the best glide-equivalent distance in autorotation. Anything bolted to the outside of the aircraft moves the parasite branch upward and both of those speeds change with it, which is why performance data are quoted per configuration.

Hover to Forward Flight: What the Cyclic Actually Does

Horizontal flight in any direction is produced by tilting the rotor disc in the direction of travel with the cyclic, so that the single rotor thrust vector gains a component along the intended path. The collective does not do this; raising it changes the size of the thrust vector, not its direction. That distinction is the definition of translational flight and it is examined directly.

Follow the vector through and the immediate consequence appears. Rotor thrust is one force of fixed magnitude at any instant. Tilt it forward and it now has a forward component that did not exist before, so the vertical component supporting the weight must be smaller than it was. Easing the cyclic forward from a hover therefore reduces vertical lift, and the aircraft begins to descend as it accelerates unless the collective is raised to restore the vertical component. In a hover close to the ground that is felt immediately; from a high hover it is felt as an initial sink.

Forward Flight: Fuselage Drag and Attitude

Parasite drag acts on the fuselage at or below the centre of gravity, while the rotor thrust that opposes it acts at the rotor head well above. The two form a couple, and the direction of that couple is nose-down. Because parasite drag grows with the square of airspeed, the couple strengthens as speed increases, so the helicopter's natural attitude becomes progressively more nose-down the faster it flies — a tendency the pilot balances with aft cyclic and which designers reduce with a horizontal stabiliser producing a download at the tail. Test the direction on a worked case: at rest there is no parasite drag and no couple; at high cruise the drag force is large and acts low, so the tail rises and the nose drops. The tendency exists only with forward speed and increases with it, not with a reduction in speed.

Descent, Powered and Unpowered

In a power-on descent the engine is still driving the rotor, so all four of the classic forces are present at once: weight always acts, the rotor produces lift, thrust is present because the rotor is being driven and the disc is tilted, and drag opposes the motion through the air. It is worth stating plainly because the examination contrasts it with the power-off case, where the engine contributes nothing and the descent is sustained by the airflow alone.

In autorotation the rotor is free-wheeling and lift continues to be produced by freely rotating blades, driven by the air coming up through the disc rather than by the engine. Directional control is retained throughout — cyclic, collective and pedals all still work, since none of them depends on engine power — and the manoeuvre is the response to a power loss, not a cause of one. Two behaviours matter to the engineer:

• Rotor RPM in a steady autorotation is higher than in powered flight. Lowering the collective reduces blade pitch and therefore blade drag, while the upflow through the descending disc drives the rotor; both act in the same direction and the rotor tends to accelerate. The pilot regulates it with the collective — raising the lever increases pitch and drag and slows the rotor, lowering it lets the rotor speed up — and it is normally held at or slightly above the powered range, never allowed to decay.
• The flare converts speed into rotor energy. Raising the nose near the ground increases the upflow through the disc, which accelerates the rotor and simultaneously increases rotor thrust, reducing both the rate of descent and the groundspeed before the collective is finally raised to cushion the touchdown. The energy for that final pull comes from the rotational inertia stored in the blades, which is why blade mass appears in the rotor RPM design decision described earlier in this note.

The height-velocity diagram in the flight manual maps where a successful power-off landing is achievable. Its avoid regions are the low-height, low-speed corner — too little height to trade for rotor RPM and too little speed to flare with — and a high-hover region where the descent would build up before translational airflow could establish. Both are consequences of the same energy accounting, not arbitrary limits.

Turning Flight and the Load Factor

In a balanced level turn the rotor must produce a vertical component equal to weight and a horizontal component to provide the centripetal force, so total rotor thrust must exceed weight by the load factor \(n = 1/\cos\phi\). The arithmetic is worth doing once because the numbers are not intuitive.

Why the Speed Limit Is Not a Single Number

Never-exceed speed is placarded as a function of density altitude and weight rather than as one figure, and both variations follow from the rotor limits described in the sections above. At higher density altitude the same indicated airspeed corresponds to a higher true airspeed, so the advancing blade tip approaches its compressibility limit sooner; at the same time the thinner air requires greater blade pitch for the same thrust, so the retreating blade is already closer to the stall. Both effects push the limiting speed down. At higher weight the second effect appears on its own: more thrust means more blade pitch, so the retreating blade stalls at a lower forward speed and the limit again comes down. An engineer signing off a placard change, a stabiliser modification or an external-stores installation is therefore working on a limitation with real aerodynamic content behind it, not an arbitrary number.
